6V/12V Metal DC Geared Motor w/Encoder-CQRDJ-GL

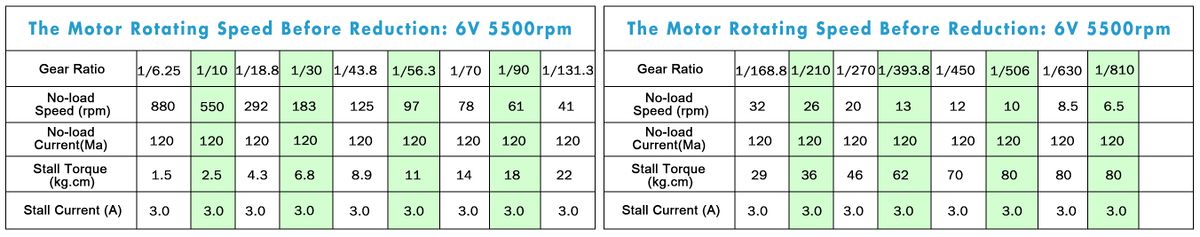

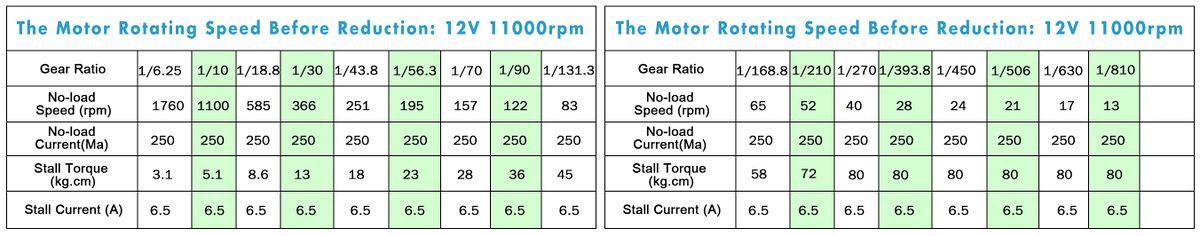

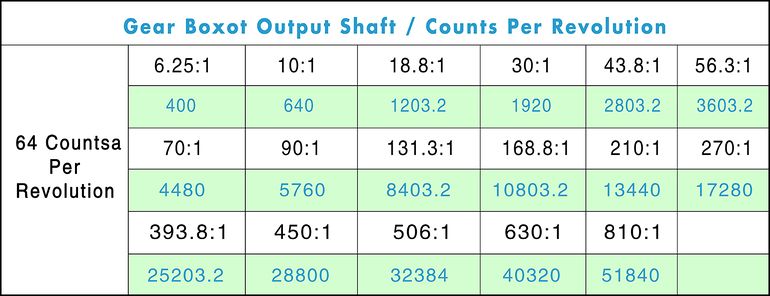

This gearmotor is a powerful 12V/6V brushed DC motor with a 6.25:1/10:1/18.8:1/30:1/43.8:1/56.3:1/70:1/90:1/131.3:1/168.8:1/210:1/270:1/393.8:1/450:1/506:1/630:1/810:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 64 counts per revolution of the motor shaft, which corresponds to 5760 (90:1) counts per revolution of the gearboxot is output shaft. These units have a 16 mm-long, 6 mm-diameter D-shaped output shaft. When the working voltage of the DC gear motor is 12V, the motor rotation speed is 11,000 rpm before the motor is decelerated. When the working voltage of the DC gear motor is 6V, the motor rotation speed is 5500 rpm before the motor is decelerated.



Stalling is likely to damage the gearmotor. Stall parameters come from a theoretical extrapolation of performance at loads far from stall. As the motor heats up, as happens as it approaches an actual stall, the stall torque and current decrease.

Do not screw too far into the mounting holes as the screws can hit the gears. CQRobot Manufacturer recommends screwing no further than 3mm (1/8 inch) into the screw hole.


Motor Encoder

  • Encoder Operating Voltage: 3.3V - 24V
  • Encoder Type: Hall (Incremental Type)
  • Encoder Resolution: 64CPR

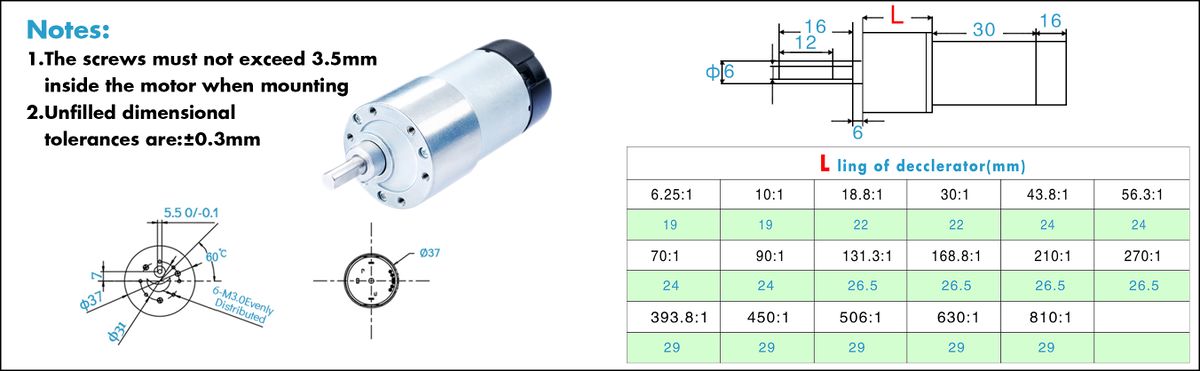

Motor Size

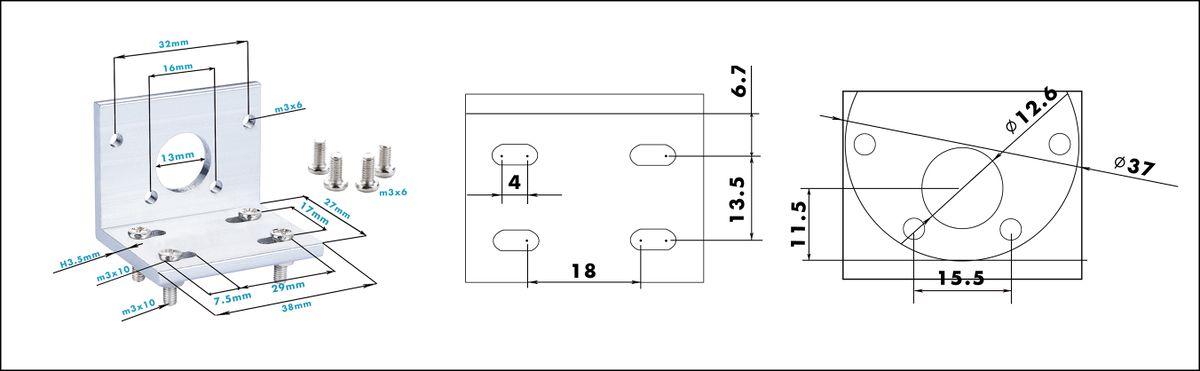

Metal Bracket Size


Connect the Renderings


Encoder Diagram

Diagram for Arduino UNO


Interrupt Port with Different Board

Notcie: attachInterrupt()


For example,with arduino UNO board, you want to use interrupt port 0(int.0). You should connect digital pin 2 with the board. So, the following code is only used in UNO and Mega2560. If you want to use arduino Leonardo or Romeo, you should change digital pin 3 instead of digital pin 2.

See the link for detail

Encoder Sample Code

//The sample code for driving one way motor encoder const byte encoder0pinA = 2;//A pin -> the interrupt pin 0 const byte encoder0pinB = 4;//B pin -> the digital pin 4 byte encoder0PinALast; int duration;//the number of the pulses boolean Direction;//the rotation direction

void setup() {

 Serial.begin(57600);//Initialize the serial port
 EncoderInit();//Initialize the module


void loop() {

 duration = 0;


void EncoderInit() {

 Direction = true;//default -> Forward
 attachInterrupt(0, wheelSpeed, CHANGE);


void wheelSpeed() {

 int Lstate = digitalRead(encoder0pinA);
 if((encoder0PinALast == LOW) && Lstate==HIGH)
   int val = digitalRead(encoder0pinB);
   if(val == LOW && Direction)
     Direction = false; //Reverse
   else if(val == HIGH && !Direction)
     Direction = true;  //Forward
 encoder0PinALast = Lstate;

 if(!Direction)  duration++;
 else  duration--;
